100 Micron Polypropylene Polyester Liquid Filter Bag with Hot-Melt or Sewing Thread:

There are many standard sizes of liquid filter bags, different sizes and shapes of filter socks can be customized.

PRODUCT INFORMATION

Brand	FILTER
Material	PE / PP / NMO / PTFE
Size	1# 180*410mm/ 2# 180*810mm/ 3# 102*210mm/ 4# 102*360mm/ 5# 152*560mm
Filtration accuracy	0.5-300 microns(µm)
Bag body types	Stitched, Welded
Bag top types	Plastic ring top, Metal ring top, Raw top, Drawstring top
Bag bottom types	"Arc" shape bottom, "V" shape bottom

Note: We can provide you with customized products!

The filter sock are available in many different sizes and shapes. The filter sock could be custom made. Normal used sizes of filter sock are.

Model	Filter Bag Area (m²)	Filter Bag Volume (Liter)	Filter Bag Diameter (Inch/cm)	Filter Bag Length (Inch/cm)
1#	0.19	7.9	7/18	16/41
2#	0.41	17.3	7/18	32/81
3#	0.05	1.4	4/10.2	8.25/21
4#	0.09	2.5	4/10.2	14/36
5#	0.22	8.1	6/15.2	22/56

Filter material performance

Ilter material	Temperature resistance range	Strong acid	Weak acid	Strong base	Weak base	Oils and fats	Aromatic	Alcohol ether	Organic solvents	Hydrolyzed organisms
Polyester (PE)	130-150		Δ			Δ	Δ	Δ	Δ	Δ
Polypropylene (OPP / PO)	90-110	Δ	Δ	Δ	Δ		Δ		Δ	Δ
Nylon (NMO)	130-150			Δ	Δ	Δ			Δ	Δ
Polytetrafluoroethylene (PTFE)	250-300	Δ	Δ	Δ	Δ	Δ	Δ	Δ	Δ	Δ

Precision conversion table

Micron (μm)	1	3	5	10	20	25	50	70	100	125	149
Mesh	15000	5000	2500	1250	625	550	300	200	140	120	100
Micron (μm)	200	250	300	350	500	590	710	840	1000	1200	1400
Mesh	70	60	50	45	35	30	25	20	18	16	14

PRODUCT DETAILS

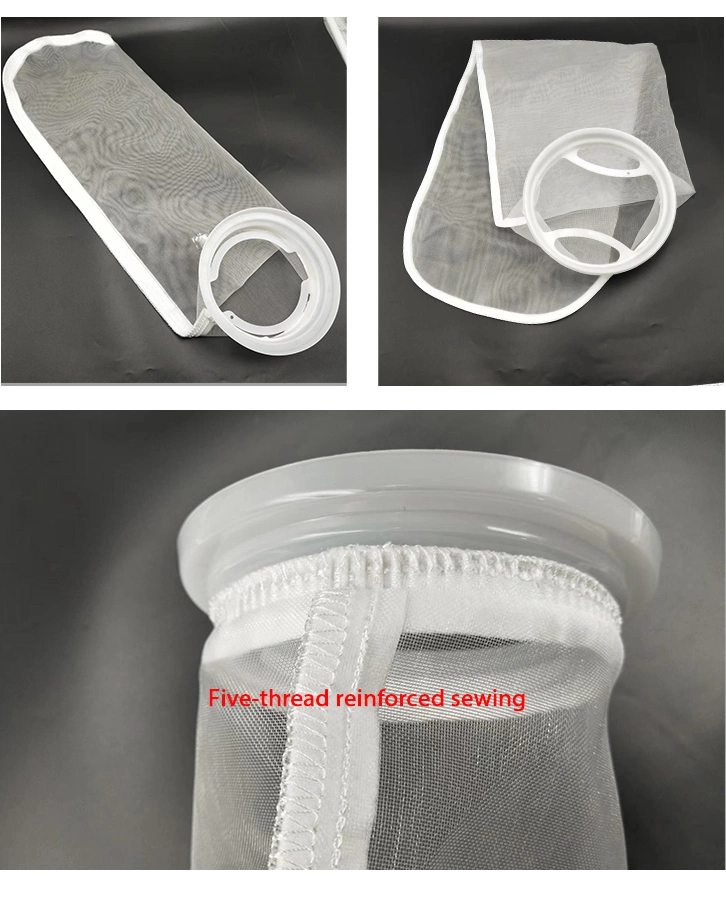

1. Five-thread sewing hemming technology High pressure resistance.
The bag mouth is tightly stitched without gaps.
The needle thread is tight and there is no needle eye to prevent leakage.
This product is produced using a high-speed industrial sewing machine and uses silicone-free oil to cool down.

2. Hot melt welding Sealed without leakage
Hot-melt welding, seamless combination process, strengthen the dirt collection effect.
Use digital co-located multi-point welding equipment to ensure that each point of welding is firm.
Without any special bleaching and dyeing treatment, it fully complies with environmental standards.

Bottom Type
Welded arc Stitched arc Welded V


PRODUCT REAL SHOT
PRODUCT PROCESS(AIR FILER BAG AND LIQUID FILTER BAG):

APPLICATIONS:

ADVANTAGES:

1) We have experience in providing OEM services to many big factories in USA, Japan, Taiwan, etc., and have directly or indirectly sold to more than 50 countries, such as Europe, Japan and USA.

2) We professionally produce various kinds of the filter bag,filter cloth,filter Cartridgeand its fittings for more than 20 years.

3) We are the manufacturer, can assure the price ,quality and shipment.

CERTIFICATE:

Anhui Filter Environmental Technology Co.,Ltd. is a high-tech environmental protection enterprise

which mainly producing all kinds of dust collector, filter cloth, air and liquid filter bag, filter cage,

filter cartridge and filter fittings.

Anhui Filter have strong professional technical personnel. We have production, research and

development bases in Funing of Jiangsu and Botou of Hebei. We help customers solve some

complex filtering problem to ensure the customers achieve the best operation status by years

of experience, high-tech standards and strict quality management.

Anhui Filter introduces into facilities, which producing different needle felt such as polyester,

polypropylene, Arcylic, Aramid, Nomex, PPS, P84, PTFE, Fibre Glass, compound filter. We

also have different plysical and chemical surface finishing, one side singeing, calendered, heat-set,

oil & water repellent, antistatic, overlay PTFE membrane etc. Using import equipment for making

diffenent style filter bag and cage diameter and length to meet the customers requirements.

The production are widely used in the field of steel, cement,power, refuse burning, asphalt,

petroleum, food,chemical, woods, tobacco etc.

​​​​​Quality product performance and good reputation, our products are not only successful sales in

China, and have been exported to more than 120 countries and regions in the world, including:

Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates,

Saudi Arabia and other countries, the products are subject to a great welcome and praise.

Our Motto is:“the right filter, the right bag, at the right price, come on.”

For more detailed information on our industrial filter production, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.Pls send mail to nancy@airfilterbag.com.
