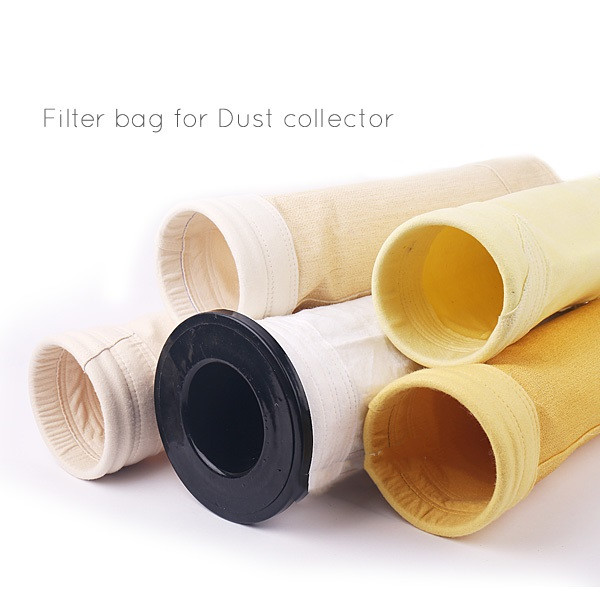

Nomex(Aramid)oil&water repellent Filter Bag:
Description:
Material:Nomex(Aramid)Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as
your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Parameters:
| Fibre | Aramid |
| Scrim | Aramid |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.2 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set,oil&water repellent treatment. |
| Air permeability (L/m2/s): | 120~200 |
| Tensile strength (N/5× 20cm) | Warp:>800 Weft:>1100 |
| Tensile elongation (%): | Warp:<30 Weft:<40 |
| Temperature (ºC): | Continue: 204 Instant: 240 |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
Production Features:
1.High temperature resistance
2.Good anti-acid/anti-alkali capacity
3.Excellent anti-abrasion capacity
4.High filtration efficiency
5.Good raw material, competitive price
6.Fast delivery
7.Size can be customized
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam
integrity. Top constructions consist of snap band, flange top, ring
top, soft cuffs or raw edge. Bottom removal bags are constructed
with a raw top or soft cuff. Top and bottom removal bag bottoms
have disc bottoms that are sewn using an overlock (surge) stitch or
lock stitch. A wear strip or custom skirts is attached to the
bottom portion of the bag to prevent premature wear from bag-to-bag
and bag-to-cage abrasion.
Application:
Asphalt mixing plants.1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
