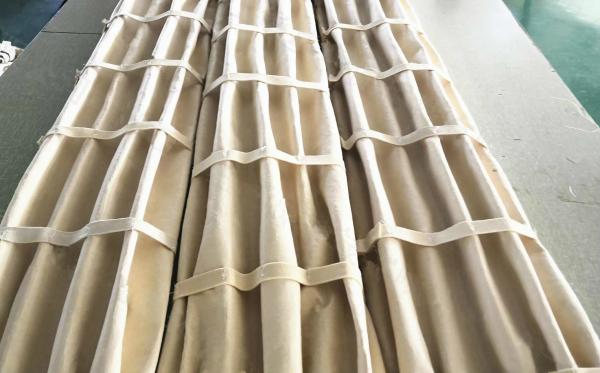

Custom manufacture High Temperature Star type Filter Bag Pleated Dust Collect Bag for Cement Plant/Power Plant

Description:

Material: All Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 130, Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.

Making method: Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.

Technical Parameters:

Production Features:

1.High efficient filtration level.

2.Depth type filtration.

3.Wide range of chemically compatible media.

4.High temperature resistance.

5.High flow efficiency.

6.High air to cloth ratio.

7.Various coatings are available.

Application:

1. Asphalt mixing plant.

2. Biomass power stations.

3. Chemical and pharmaceutical industry.

4. High temperature dedusting.

5. Coal-fired power stations.

6. Food industry.

7.Non-ferrous metal and steel production.

8.Cement,gypsum and lime industry.

9.Thermal waste treatment.

Packing & Delivey:

Competitive Advantages:

1. 100% custom pass guaranteed.

2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

3. Flexible and Untraceable payment terms.

4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.

Shipping Details:

Anhui Filter Environmental Technology Co.,Ltd. is a high-tech environmental protection enterprise

which mainly producing all kinds of dust collector, filter cloth, air and liquid filter bag, filter cage,

filter cartridge and filter fittings.

Anhui Filter have strong professional technical personnel. We have production, research and

development bases in Funing of Jiangsu and Botou of Hebei. We help customers solve some

complex filtering problem to ensure the customers achieve the best operation status by years

of experience, high-tech standards and strict quality management.

Anhui Filter introduces into facilities, which producing different needle felt such as polyester,

polypropylene, Arcylic, Aramid, Nomex, PPS, P84, PTFE, Fibre Glass, compound filter. We

also have different plysical and chemical surface finishing, one side singeing, calendered, heat-set,

oil & water repellent, antistatic, overlay PTFE membrane etc. Using import equipment for making

diffenent style filter bag and cage diameter and length to meet the customers requirements.

The production are widely used in the field of steel, cement,power, refuse burning, asphalt,

petroleum, food,chemical, woods, tobacco etc.

​​​​​Quality product performance and good reputation, our products are not only successful sales in

China, and have been exported to more than 120 countries and regions in the world, including:

Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates,

Saudi Arabia and other countries, the products are subject to a great welcome and praise.

Our Motto is:“the right filter, the right bag, at the right price, come on.”

For more detailed information on our industrial filter production, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.Pls send mail to nancy@airfilterbag.com.
